Ground Screw Screw Piles with Flange plate
|Payment Type:||L/C,T/T,D/P,Western Union|
|Terms of Trade:||FOB,CFR,CIF|
|Place of Origin:||Hebei China|
|Certificate:||GB DIN EN ISO1461-1999|
Model No.: LD-F
Ground Screw also known as ground anchor,anchors,piles,screw piles,helical piers,etc.
Flanged Ground Screw for highway ,timber construction ,container house construction ,solar mounting ,garden leisure construction .
Ground screws are installed using a number of different screwing aids and machines depending on your project . They are installed perfectly perpendicular at the exact point within minutes . Ground screw foundations are suitable for natural ground , but also can be installed in rock and tarred surfaces .
Advantage of Q 235 carbon steel Hot dip galvanized ground screw are as below :
- No excavating , digging , or concrete
- Installs within minutes
- Instantly loadable with no waiting time
- Stable , durable , storm proof , water proof , and
- Environmentally friendly , ecological , and sustainable
- No damage to surrounding landscape
- Fast and inexpensive to dismantle and relocate
- Can be installed into sealed surfaces
- Not dependent on weather conditions
The hot dip galvanized Spiral Screw foundation for solar energy system , PV Mounting system .
Our ground screw /ground anchor / ground screw pile made of Q 235 carbon steel with good quality .
Flange plate ground screw for timber beam construction , with modular usage adapter to the respective structural loads .
Ground screw anchor pole used in Timber construction , civil and mining projects , mailbox , lighting pole , advertising board , for temporary or permanent use .
we can make different size ground screw according to the request of clients , size from 550 mm to 6000 mm .
The ground screw also can be use in vineyard , farm or horse fence , Hot dip galvanized flange ground screw anchor for lighting pole , timber construction , farm and fencing , house construction , the flange ground screw with flange , flange size is 8*200 mm , or 6*160 mm , or according to clients' request
Material of metal ground screw : Q 235 carbon steel
Length of the F series ground screw : 550-6000 mm .
Ground Screw pile diameter : 48 mm , 68 mm , 76 mm , 89 mm , 114 mm , according to clients' request
Thickness of metal ground screw pile : 2.75 mm , 3.00 mm , 3.75 mm , 4.00 mm
Flange diameter : 200 mm , thickness : 8 mm . or according to clients' request
Continuous welding with auto welding machine .

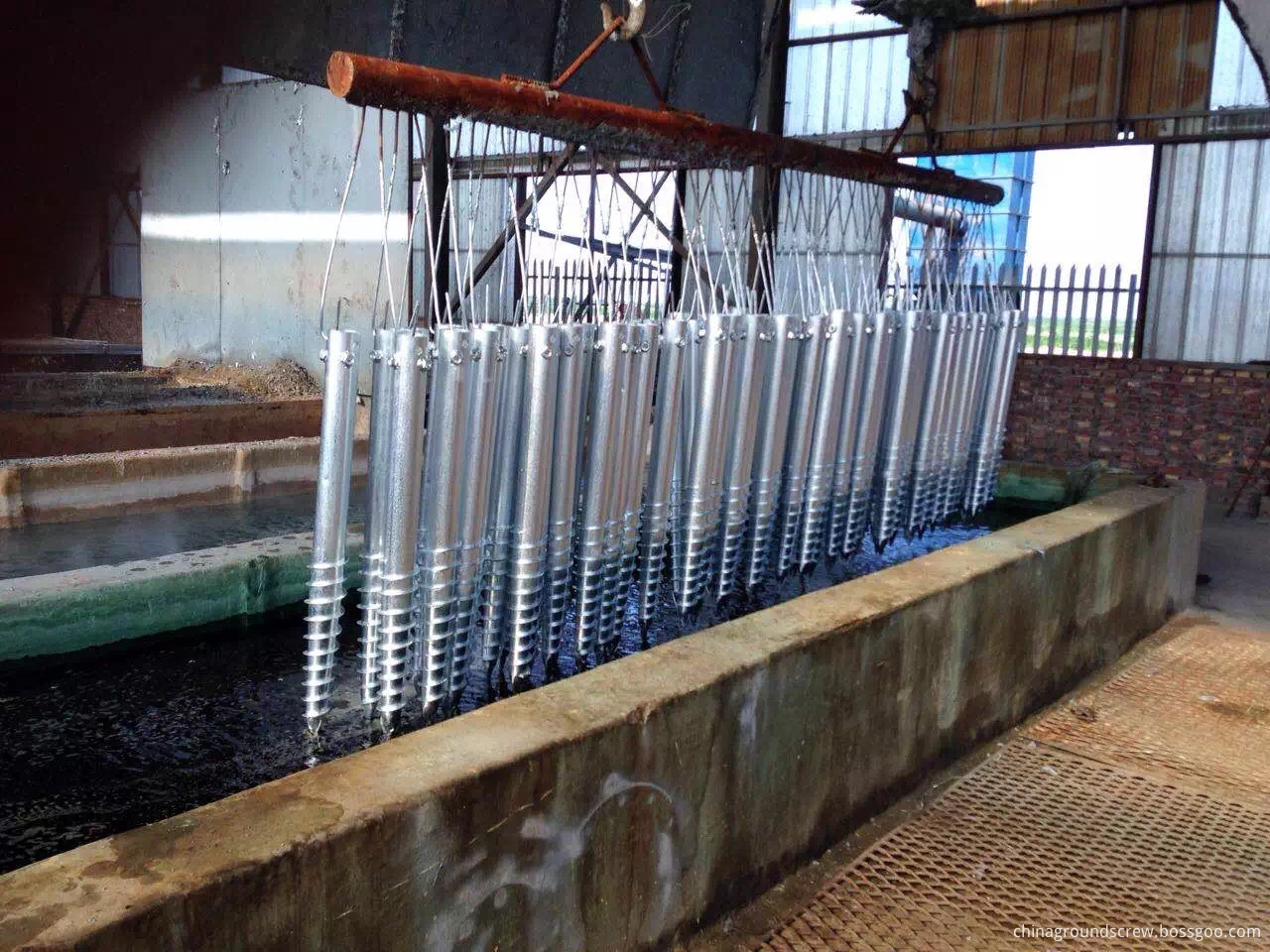

Surface treatment : Hot dip galvanized , According to DIN EN ISO 1461-1999 , thickness of coating zinc : more than 80 micron
Production Chart : Cutting pipe length according to design , forming the pipe according to the design , welding nut , flange , blade and assemble , acid parkling and hot dip galvanized treatment , QC and packing , shipments .
Range of application of steel ground screw pile : Solar energy system , garden or farm fencing , timber construction , simple house construction , advertising board and banner , traffic signature , lighting pole , flag pole , event structure , sheds and containers &
Advantage : easy install by spiral piling machine , no digging , no concrete , no waiting , much convenient , cost effective , save time , no need concrete foundation , suitable for different soil
Size of ground screw are like the below :
